Saab 9-3 “ICM4” Evolves: Ahmad Adds OEM-Style Physical Knobs to the CarPlay Upgrade

For readers encountering this topic for the first time, “ICM4” is not an official Saab designation. It is a community-coined term used to describe modern touchscreen upgrades installed in 2003–2006 Saab 9-3 models equipped with ICM1, ICM2 or ICM3 systems.

When the 9-3 received its 2007 facelift, the entire infotainment architecture changed. Pre-facelift cars never received a factory touchscreen successor. As a result, enthusiasts began developing solutions that bring Apple CarPlay and Android Auto into those early dashboards while preserving the original layout.

One of the most refined implementations so far has been Ahmad Abu Maizer’s ICM4 system, which we previously covered in detail. Now that project has taken another step forward.

Why Owners Wanted Physical Controls Back

Touchscreen integration solves navigation, media streaming, and smartphone connectivity. But the Saab cockpit was designed around tactile interaction.

After the first wave of ICM4 installations, one request kept appearing in owner feedback: bring back a physical volume knob – and proper tone adjustment without entering menus.

Drivers wanted to adjust volume without looking at the screen. They wanted bass and treble access the way Saab originally intended – immediate, mechanical, and intuitive.

Ahmad listened.

The ICM4 Volume Knob Add-On

The new add-on is not just an auxiliary control module. It fully emulates and replaces the stock audio motherboard logic used in older ICM systems.

The volume control features a push-to-click ON/OFF function, mirroring OEM behavior. Bass, treble, and fade adjustments operate exactly as the factory system did. Fade automatically tucks away after adjustment, reflecting how most owners leave it centered.

What makes this significant is that it eliminates previous compromises. There is no need to keep the original motherboard hidden behind trim panels. No taping, no partial disassembly, no “temporary workaround” installations. The add-on assumes full control of audio adjustment.

Functionally, it behaves as if Saab had designed the next generation of controls themselves.

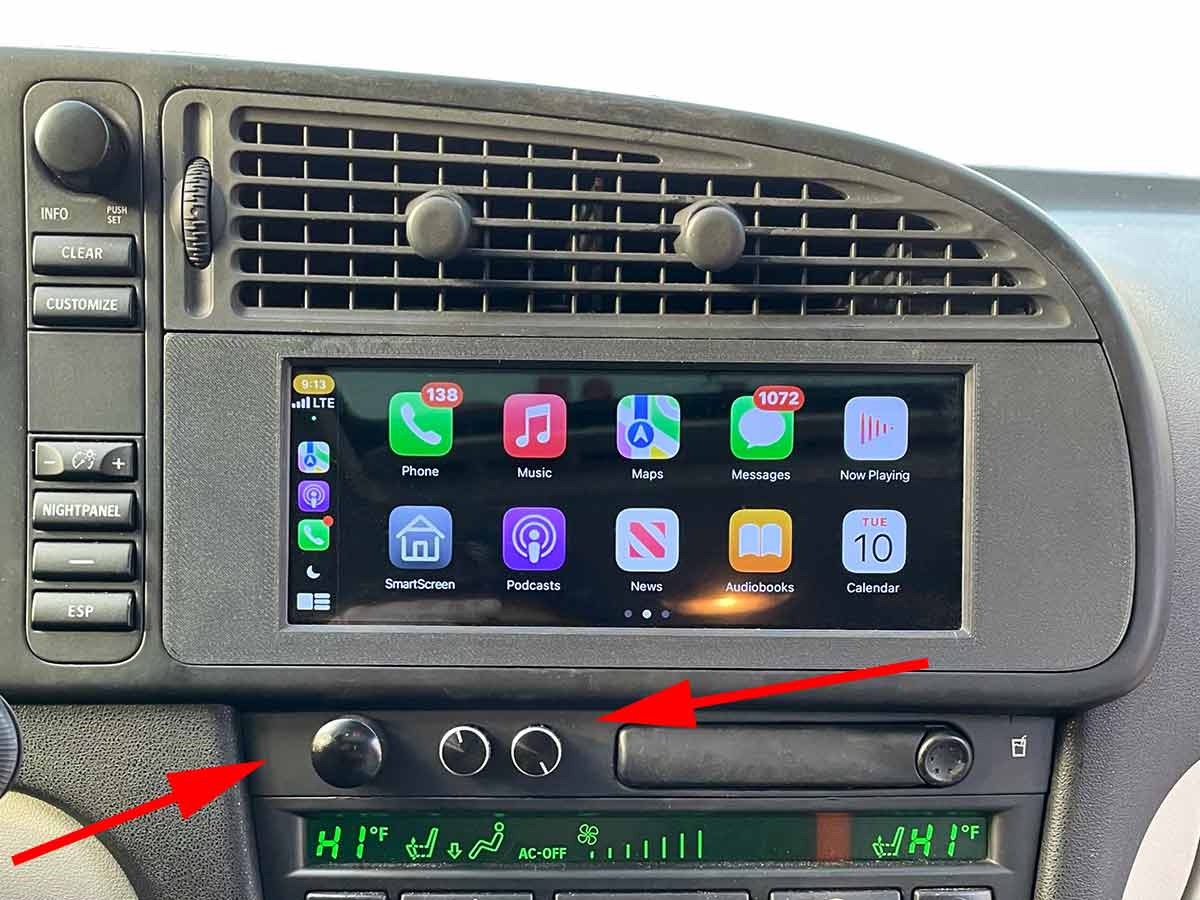

Integrated Into the Cup Holder Section

One of the most thoughtful design choices is the physical placement.

Rather than modifying the upper vent assembly or interfering with the ICM screen housing, Ahmad integrated the controls into the cup holder trim section directly below the ICM unit.

The control box mounts behind that trim, positioned above the HVAC controls. A precisely 3D-printed drilling template is included, following the exact curvature of the cup holder panel to ensure centered, evenly spaced pilot holes.

Installation does require drilling three holes. However, the result looks integrated rather than added on.

The knobs themselves are removable. That allows individual replacement if needed and also makes it possible to remove the cup holder trim without dismantling the control system.

Velcro mounting prevents movement behind the panel and keeps the module secure above the AC controls.

Real-World Operation

The add-on works with FM radio, the CD player, and all other audio sources running through the system. It restores immediate tone control without requiring screen navigation.

There is no need to remove the top air vent or the ICM unit to adjust bass or treble. The physical interaction remains consistent regardless of whether you are using CarPlay, Android Auto, or legacy audio inputs.

For many drivers, this restores the cockpit ergonomics that define the early 9-3 experience. Volume changes can be made without shifting focus from the road. That detail matters.

Compatibility and Availability

The module is compatible exclusively with ICM1 and ICM2 vehicles (2003–2006). It works with any of Ahmad’s ICM4 units.

The current price is $150 plus shipping, with a discount offered to previous ICM4 customers. Units are largely built to order and tested before shipment, although a larger batch is currently in production.

A Clear Evolution

In recent months, we have seen multiple interpretations of what the community calls “ICM4.” From OEM-style prototype builds to larger-format screen integrations, the concept continues to evolve.

This particular update stands out because it directly addresses how owners actually use their cars. It does not chase features. It refines usability.

For the large number of 2003–2006 Saab 9-3 models still on the road, that refinement is meaningful.

If you missed our original coverage of Ahmad’s system, you can read it here:
https://www.saabplanet.com/saab-9-3-icm4-carplay-android-auto-oem-upgrade/

“ICM4” may not be an official Saab term. But developments like this suggest that the unofficial fourth generation of 9-3 infotainment has clearly arrived – built by enthusiasts, for enthusiasts.

While Some Upgrade Infotainment, Others Rebuild Critical Hardware

Modern retrofits like the ICM4 CarPlay solution solve usability problems inside the cabin. But elsewhere in the Saab ecosystem, independent engineers are addressing something more fundamental: electronic survivability.

One of the most failure-prone components in NG900 and OG9-3 ACC-equipped cars – the radiator fan controller – is now being fully reverse engineered and reproduced at PCB level. Instead of relying on used modules or partial transistor repairs, Joakim Karlsson has recreated the board using the more robust OG9-3 filtering design and made it compatible with both generations.

The project is documented in detail in our recent analysis of the reverse-engineered NG900/OG9-3 ACC fan controller reproduction, including its universal PCB layout, refurb kit plans, and validation status.

Karlsson’s work does not stop there. Through tools such as TXLogger for Trionic 5/7/8 and the NG9-3 CIM Tool Nano, he represents a growing category of Saab specialists focused on restoring functionality at circuit level — not modifying behavior, but preserving it.

In practical terms, this is what determines whether 1990s and early-2000s Saabs remain serviceable long term: not cosmetic upgrades, but reproducible electronics.
